Overview
Barium Nitrate (Ba(NO3)2)
Barium Nitrate single crystals exhibit optical properties that make them well-suited for use in Raman shifting and related laser applications. These properties include:
-

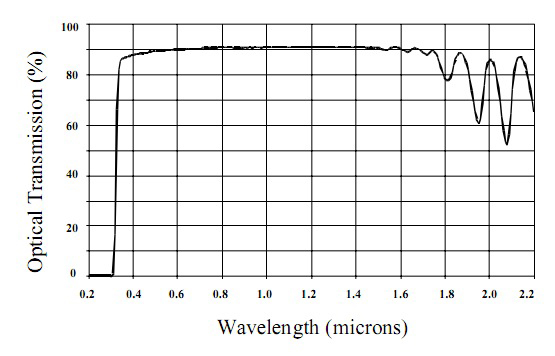

Optical transmission across a broad range from 350 to 1,800 nm
-
Large Raman shift of 1047 cm-1 toward longer wavelengths
-
High quantum conversion efficiency for first and second Stokes components
Applications include the efficient generation of 1.53 µm eye-safe wavelengths.
|
Inhouse crystal growth
All barium nitrate crystal growth, orientation, fabrication, polishing, and testing is performed at our Northvale, NJ facility, ensuring complete traceability and satisfaction with every single crystal.
|
Properties
Barium Nitrate
Physical and Optical Properties
|
Chemical Formula
|
Ba(NO3)2
|
Crystal Symmetry
|
Cubic
|
Class
|
P23
|
Lattice Constant
|
Å
|
Density
|
3.244 g/cm3
|
Mohs Hardness
|
2.5 - 3
|
Refractive Index
|
λ = 0.5461µm |
1.5756
|
| λ = 1.06 µm |
1.5551
|
Laser damage (uncoated 110 surfaces, = 0.53 µm, 50 nsec)
|
10-17 J/cm2
|
Vibrational Raman mode
|
1,047 cm-1
|
Size & Orientation
Available in cross sections up to 10 x 10 mm and lengths up to 75 mm, Barium Nitrate crystals are typically oriented, finished and coated as follows:
- Oriented with laser path along the <110> axis
- Orientation accuracy to ± 5
- Entrance and exit faces flat and parallel, or at Brewster angle
- Standard parallelism 3-5 arcmin (tighter parallelism or a larger wedge upon request)
- Transmitted wavefront λ/6 on 50 mm-long crystals
- Dielectric coating available to protect polished surfaces from ambient moisture fogging
